Manual

igus^® smart plastics Display

SafetyRead this manual completely before commissioning and observe all safety and installation instructions. If integrated into an overall system, this information must be passed on to the end user.¶

Warranty exists only in accordance with the specifications stated in this manual and is limited to repair or replacement of the display. igus^® accepts no liability for integration tasks, consequential damages, misuse, or unauthorized modifications; the right to make changes to the product and documentation is reserved.

The display may only be operated if the safety and installation instructions are observed, the housing is mounted in compliance with ESD/EMC requirements, the device is unmodified and in perfect condition, and the operating limits specified in the technical data are adhered to.It seems like you didn't include any text to translate. Please provide the text you'd like me to translate into English.¶

Qualified Personnel

The display may only be operated and maintained by qualified specialist personnel.

• The personnel must have read and understood this manual and any additional documentation that may exist.

• The personnel must be familiar with all relevant applicable standards, regulations, and accident prevention regulations.

• The personnel must be able, through their training, to anticipate or identify any hazards that may arise during use of the system.

• The personnel must be able to ensure the safety of persons and objects when using the sensor unit in the overall system.

• The personnel must be trained in the handling of ESD-sensitive devices and must take all necessary precautions.

Please provide the text you'd like me to translate.¶

The following notice boards will appear several times in the manual. They are classified so that the degree and type of hazard are indicated.

Product Overview¶

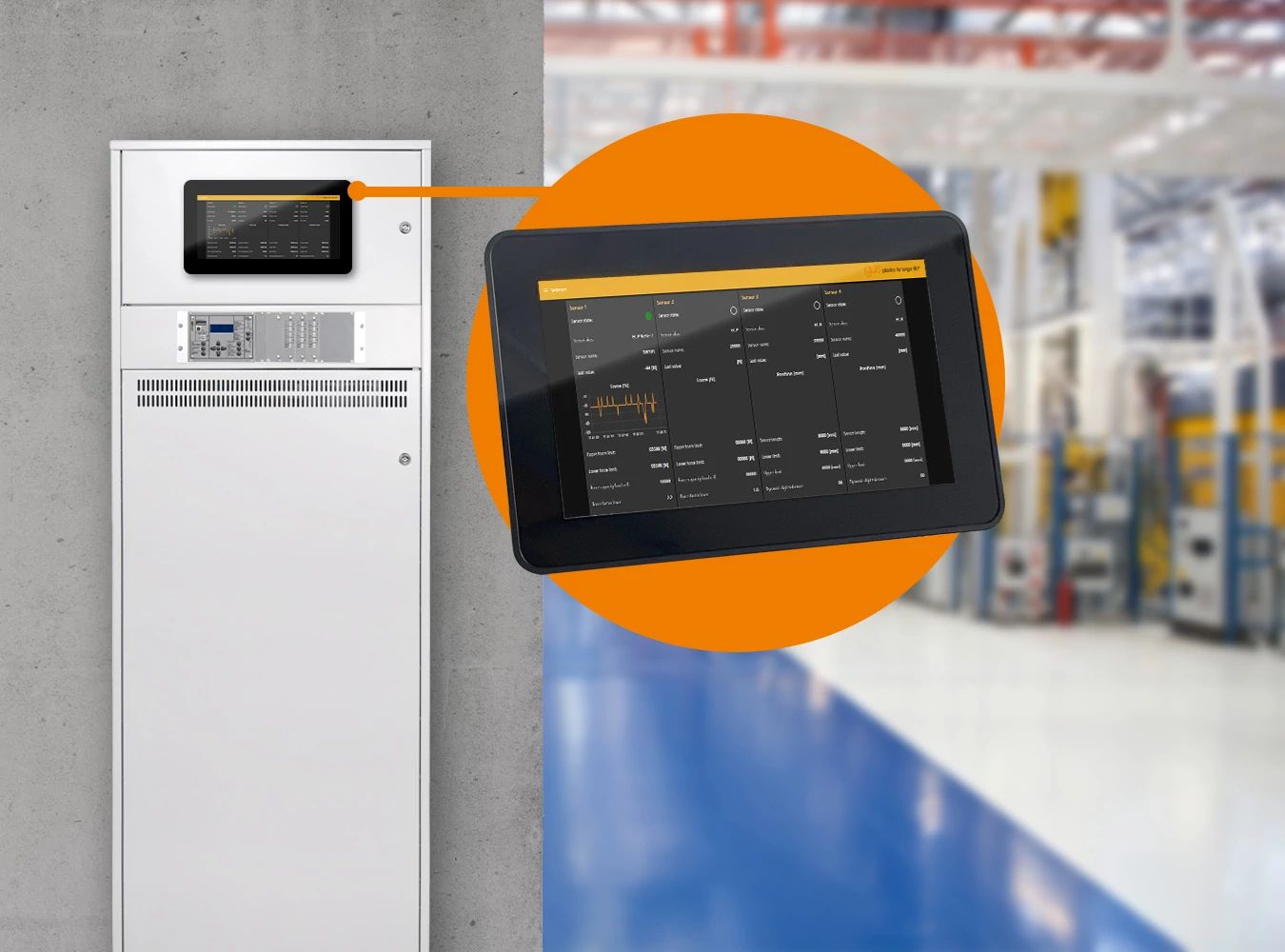

The smart plastics display is intended for showing sensor data and operating the i.Sense dashboard. This manual explains the commissioning process and provides data on the complete system. For information on individual components of the display, please refer to the manufacturer's documentation. This is linked in the following paragraph.

Installation¶

Mechanical Installation¶

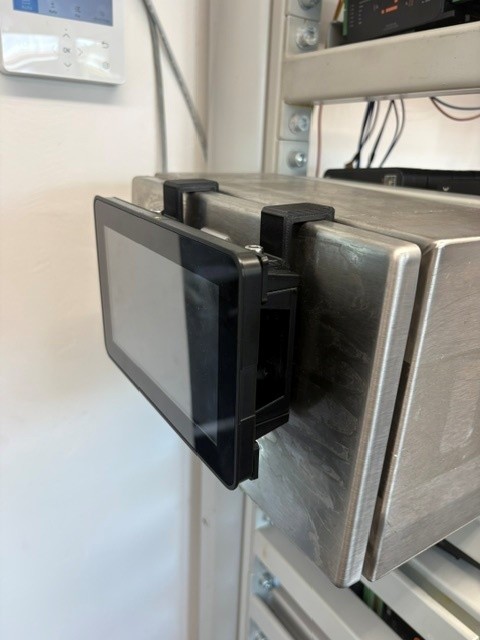

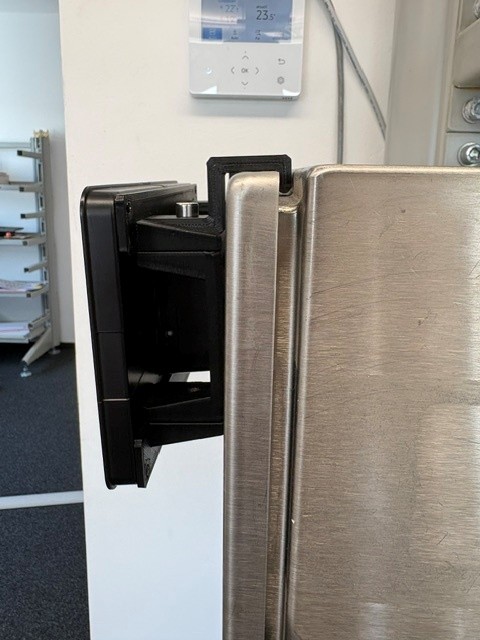

Installation via hooks:

• Simply hang the display at the top of your control cabinet door in the gap between the door and the cabinet, as shown in the images above

Installation via drilling:

• Remove the hooks by loosening the 4 screws that secure them, and make the appropriate drill holes at the location in your control cabinet where you want to mount the display

• Dimensions of the plate for drilling: XXcm by XXcm

Electrical Installation¶

1. Connect the display to power via USB-C cable
2. Connect the display to your i.Sense or i.Cee via USB cable
3. Turn on the display and the dashboard should open automatically

Regulatory & Legal¶

Compliance with EU Directives The CE marking on the display confirms conformity with the following European directives:

The applicable directives are listed in the EU declaration of conformity for the respective device.

Please provide the text you'd like me to translate.¶

Note on the Cyber Resilience Act (CRA) The display contains digital components. Such products are subject to the security requirements of the EU Cyber Resilience Act (Regulation (EU) 2024/2847). The CRA stipulates that software and networked devices must be operated securely and kept up to date throughout their entire lifecycle.

To ensure you can use the display reliably and securely, please note the following: - Install provided firmware and software updates regularly. - Use secure network and access settings. - Change default passwords immediately after commissioning. - Disable interfaces or services that are not required.

If you notice a technical anomaly or a possible security vulnerability, please report it via the official ⟦PROTECTED_igus⟧ support channel or through the service portal. The CRA also requires that users have access to information about security support, known risks, and update processes. Further details can be found in the documentation for this product or from your national market surveillance authority.

Please provide the text you'd like me to translate.¶

Note on EU Dual-Use Regulation (EU) 2021/821 Individual electronic components and sensors in the display may, depending on the technical configuration, fall within the scope of the EU Dual-Use Regulation (EU) 2021/821. This regulation governs goods that can be used for both civilian and military purposes.

An export licence may therefore be required for export to countries outside the EU. Whether this applies depends on the target market, the application, and the specific technical configuration.

Please check the following before transferring or exporting the product: - whether export restrictions apply to your destination country, - whether your application is considered security-critical or military in nature, - whether authorisation is required under applicable regulations.

Further information is available from your national export control authority (e.g. BAFA in Germany) or in the official EU documentation.

ServiceCustomer Service¶

de-smartplastics-service@igus.net +49 (0) 2203 9649 9806

Technical support for igus^® smart plastics

Documentation/FW

https://www.igus.de/info/i-sense-modul-2

Download of manuals, FW updates and certificates

Website smart Plastics

https://www.igus.de/info/vorausschauende-wartung-smart-plastics

Option to order sensors, processing units and further accessories

Contact

www.igus.de

info@igus.de

+49 2203 9649-9507
